China CW62100M/6000 Gap-Bed Lathe

NLLDM053:

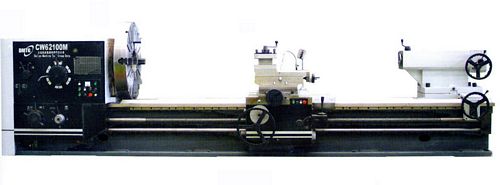

New, China CW62100M/6000 Gap-Bed Lathe

  • Swing over bed 1000mm
  • Between centres 6000mm
  • Swing over cross slide 630mm
  • Swing in gap 1400mm
  • Gap length (from spindle nose) 600mm
  • Spindle bore 130mm
  • Taper of spindle bore 140mm (1:20)
  • Spindle nose A-15
  • No. of spindle speed 21
  • Spindle speed ranges 3.15 - 315 rpm
  • Max. spindle motor 22 kW
  • Coolant pump motor 0.125 kW
  • Width of bed 755mm
  • Cross slide travel - X axis 580mm
  • Travel of top slide 300mm
  • Max. dimension of tool shank 45 x 45mm
  • Cross feed 0.05 - 6 mm/rev
  • Longitudinal feed 0.1 - 12 mm/rev
  • Diametric pitches 1/2 - 56 DP
  • Metric pitches 1 - 120mm
  • Module pitches 0.5 - 60 MOD
  • Tailstock quill diameter 160mm
  • Tailstock quill taper 80mm / 1:20
  • Tailstock quill travel 300mm
  • Weight with 3m b.c. 10,000 kg
  • Additional weight par 1m b.c. 1000 kg
  • Overall Dimensions: 8,950 mm (L) x 1,855 mm (W) x 1,780 mm (H)
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
