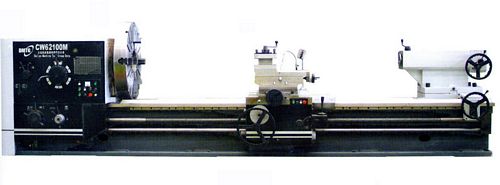

New, China CW62100M/3000 Gap-Bed Lathe
- Swing over bed 1000mm
- Between centres 3000mm
- Swing over cross slide 630mm
- Swing in gap 1400mm
- Gap length (from spindle nose) 600mm
- Spindle bore 130mm
- Taper of spindle bore 140mm (1:20)
- Spindle nose A-15
- No. of spindle speed 21
- Spindle speed ranges 3.15 - 315 rpm
- Max. spindle motor 22 kW
- Coolant pump motor 0.125 kW
- Width of bed 755mm
- Cross slide travel - X axis 580mm
- Travel of top slide 300mm
- Max. dimension of tool shank 45 x 45mm
- Cross feed 0.05 - 6 mm/rev
- Longitudinal feed 0.1 - 12 mm/rev
- Diametric pitches 1/2 - 56 DP
- Metric pitches 1 - 120mm
- Module pitches 0.5 - 60 MOD
- Tailstock quill diameter 160mm
- Tailstock quill taper 80mm / 1:20
- Tailstock quill travel 300mm
- Weight with 3m b.c. 10,000 kg
- Additional weight par 1m b.c. 1000 kg
- Overall Dimensions: 5,950 mm (L) x 1,855 mm (W) x 1,780 mm (H)
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
