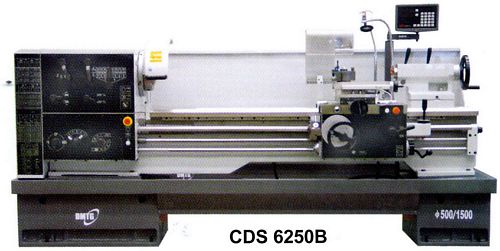

New, China CDS6250C/1500 High Speed Lathe
- Swing over bed 500mm
- Swing over saddle 290mm
- Swing in gap 760mm
- Between centres 1500mm
- Spindle bore 105mm
- Spindle nose D8
- No. of spindle speed 16
- Spindle speed ranges 26 -1700 rpm
- Max. spindle motor 7.5 kW (10 HP)
- Width of bed 394mm
- Cross slide travel - X axis 355mm
- Travel of top slide 150mm
- Max. dimension of tool shank 25 x 25mm
- Imperial pitches 7 / 16 - 80 TPI
- Diametric pitches 7 / 8 - 160 DP
- Metric pitches 0.35 - 80mm
- Module pitches 0.2 - 40 MOD
- Tailstock quill diameter 75mm
- Tailstock quill taper No. 5 MT
- Tailstock quill travel 150mm
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
Lathe Listing |
New Machinery Categories
If you require additional information on this machine
or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe),
please let us know. We would be more than happy to assist.
For sales and price enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
