China CDS6250B/1000 High Speed Lathe

NLLDM023:

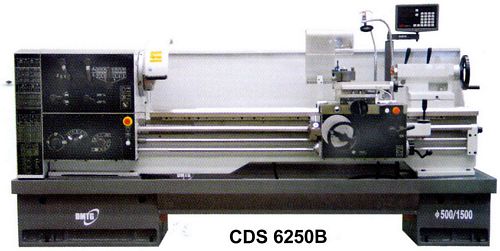

New, China CDS6250B/1000 High Speed Lathe

  • Swing over bed 500mm
  • Swing over saddle 290mm
  • Swing in gap 760mm
  • Between centres 1000mm
  • Spindle bore 82mm
  • Spindle nose D8
  • No. of spindle speed 16
  • Spindle speed ranges 26 - 2000 rpm
  • Max. spindle motor 7.5 kW (10 HP)
  • Width of bed 394mm
  • Cross slide travel - X axis 355mm
  • Travel of top slide 150mm
  • Max. dimension of tool shank 25 x 25mm
  • Imperial pitches 7 / 16 - 80 TPI
  • Diametric pitches 7 / 8 - 160 DP
  • Metric pitches 0.35 - 80mm
  • Module pitches 0.2 - 40 MOD
  • Tailstock quill diameter 75mm
  • Tailstock quill taper No. 5 MT
  • Tailstock quill travel 150mm
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
