China CDS6232/1000 High Speed Lathe

NLLDM015:

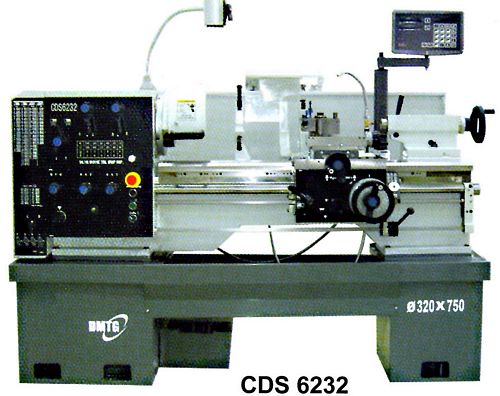

New, China CDS6232/1000 High Speed Lathe

  • Swing over bed 320mm
  • Swing over saddle 180mm
  • Swing in gap 520mm
  • Between centres 1000mm
  • Spindle bore 52mm
  • Taper of spindle bore MT6
  • Spindle nose D6
  • No. of spindle speed 12
  • Spindle speed ranges 59 - 2100 rpm
  • Max. spindle motor 2.2/3.3 kW (3/4.5 HP)
  • Width of bed 280mm
  • Cross slide travel - X axis 180mm
  • Travel of top slide 150mm
  • Max. dimension of tool shank 20 x 20mm
  • Imperial pitches 2 - 56 TPI
  • Diametric pitches 6 - 112 DP
  • Metric pitches 0.4 - 14mm
  • Module pitches 0.2 - 3.5 MOD
  • Tailstock quill diameter 50mm
  • Tailstock quill taper No. 4 MT
  • Tailstock quill travel 125mm
  • Overall dimensions: 2,110mm (L) x 935mm (W) x 1,200mm (H)
  • Net weight 1,080 kgs, Gross weight 1,530 kgs
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
