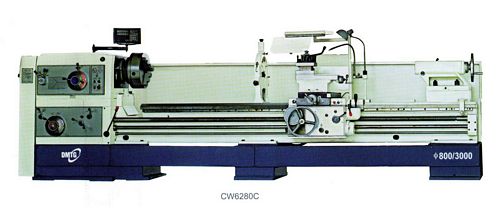

New, China CW6280C/3000 Gap Bed Lathe
- Max. swing over bed 800mm
- Max. swing over saddle 520mm
- Between centres 3000mm
- Width of gap 320mm
- Swing over gap 1000mm
- Width of bed 550mm
- Spindle bore 100/105/130mm
- Spindle speed 7.5 - 1000 rpm (18 speeds)
- Longitudinal feed 0.1 - 24.3 mm/rev (64)
- Cross feed 0.05 - 12.15 mm/rev (64)
- Rapid traverse speed 3.8 m/min
- Metric thread 1 - 240mm (39)
- Whitworth thread 14 - 1 TPI (26)
- Module thread 0.5 - 120mm (53)
- Diametric pitch thread 28 - 1 (24)
- Max. travel of cross slide 493mm
- Travel of top slide 200mm
- Main motor 11 kW
- Rapid traverse motor 1.1 kW
- Coolant pump motor 0.09 kW
- Net weight 4,830 kgs / Gross weight 6,450 kgs
- Pallet packing : 5,270 mm (L) x 1,100 mm (W) x 1,920 mm (H)
- Wooden box packing: 5,460 mm (L) x 1,150 mm (W) x 2,080 mm (H)
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
Lathe Listing |
New Machinery Categories
If you require additional information on this machine
or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe),
please let us know. We would be more than happy to assist.
For sales and price enquiry, please contact Zhongyang Engineering through
telephone, fax or email.
At Zhongyang, we take care of our customers, thereby ensuring customers come back to us for future orders.
