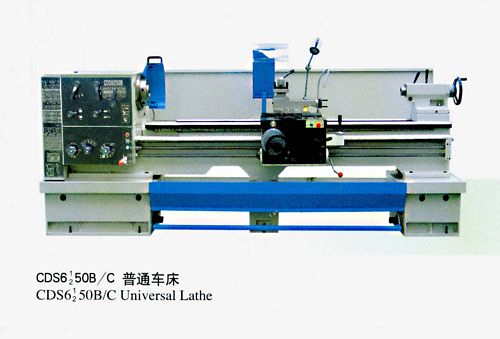

China CDS6266C/2000 High Speed Lathe

NLLDM003:

New, China CDS6266C/2000 High Speed Lathe

  • Max. swing over bed 660mm
  • Max. swing over saddle 440mm
  • Max. swing over gap 870mm
  • Width of gap 250mm
  • Between centres 2000mm
  • Width of bed 394mm
  • Spindle nose D8
  • Spindle speed 26 - 1700 rpm (16 steps)
  • Diameter of spindle bore 105mm
  • Longitudinal feed 0.044 - 1.48 mm/rev
  • Cross feed 0.022 - 0.74 mm/rev
  • Metric thread 0.35 - 80mm (53 or 77)
  • Whitworth thread 7/16 - 80 TPI
  • Module thread 0.2 - 40mm (45 or 66)
  • Pitch thread 7/8 - 160 DP (42)
  • Max. travel of cross slide 355mm
  • Travel of top slide 150mm
  • Travel of tailstock quill 150mm
  • Diameter of tailstock quill 75mm
  • Taper bore of tailstock quill M5
  • Main motor 10 HP (7.5kW) / 15 HP (11kW opt.)
  • Pallet packing: 3,780 mm (L) x 1,120 mm (W) x 1,800 mm (H)
  • Wooden case packing: 3,850 mm (L) x 1,150 mm (W) x 1,900 mm (H)
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
