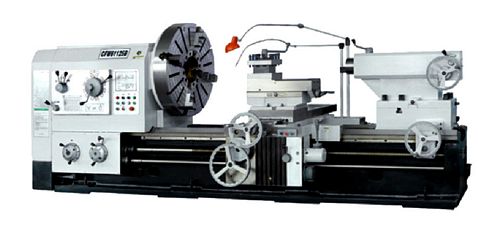

New, China CFW61125B/10000 Lathe
- Between center 10000mm
- Swing over bed 1250mm
- Swing over tool-post 865mm
- Span of guideway 755mm
- Taper hole of spindle 1:20
- Spindle bore 130mm
- Ranges of spindle speed n(1): 3.15-315 r/min (forward); 3.5-278 r/min (reverse)
- Ranges of spindle speed n(2); 2-200 r/min (forward); 2.24-178 r/min (reverse)
- No. of forward turning speeds 21
- No of reverse turning speeds 12
- No. of feeds per revolution (longitudinal/transverse): 56
- Max travel of cross tool-post 630mm; upper tool-post 300mm
- Section of tool shank 45 x 45 mm
- Diameter/travel of tailstock quill: 160/300 mm
- Taper hole of tailstock quill Morse no. 6
- Motor power 22 kw
- Rapid motor 1.5 kw
- Max weight between two centers 6000 kg
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
