NLLDD040:

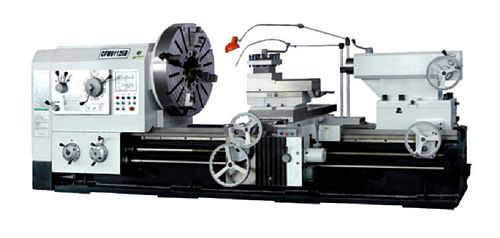

New, China CFW61125B/1500 Lathe

Between centers 1500mm
Swing over bed 1250mm
Swing over tool-post 865mm
Max turning length 1300mm
Span of guideway 755mm
Taper hole of spindle 1:20
Spindle bore 130mm
Ranges of spindle speed n(1): 3.15-315 r/min (forward); 3.5-278 r/min (reverse)
Ranges of spindle speed n(2); 2-200 r/min (forward); 2.24-178 r/min (reverse)
No. of forward turning speeds 21
No of reverse turning speeds 12
No. of feeds per revolution (longitudinal/transverse): 56
Max travel of cross tool-post 630mm; upper tool-post 300mm
Section of tool shank 45 x 45 mm
Diameter/travel of tailstock quill: 160/300 mm
Taper hole of tailstock quill Morse no. 6
Motor power 22 kw
Rapid motor 1.5 kw
Max weight between two centers 6000 kg
Overall Dimensions: 4,600 mm (L) x 2,150 mm (W) x 1,825 mm (H)
Weight approximately 10 ton

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used lathe (gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
