China CFW61100B/1500 Lathe

NLLDD034:

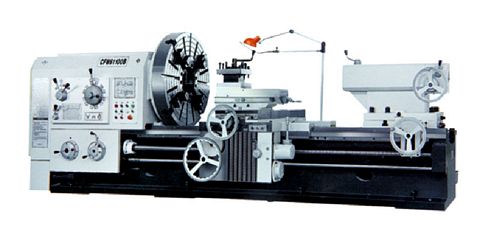

New, China CFW61100B/1500 Lathe

  • Between centers 1500mm
  • Swing over bed 1000mm
  • Swing over tool-post 615mm
  • Max turning length 1300mm
  • Span of guideway 755mm
  • Taper hole of spindle 1:20
  • Spindle bore 130mm
  • Ranges of spindle speed n(1): 3.15-315 r/min (forward); 3.5-278 r/min (reverse)
  • Ranges of spindle speed n(2); 2-200 r/min (forward); 2.24-178 r/min (reverse)
  • No. of forward turning speeds 21
  • No of reverse turning speeds 12
  • No. of feeds per revolution (longitudinal/transverse): 56
  • Max travel of cross tool-post 520mm; upper tool-post 300mm
  • Section of tool shank 45 x 45 mm
  • Diameter/travel of tailstock quill: 160/300 mm
  • Taper hole of tailstock quill Morse no. 6
  • Motor power 22 kw
  • Rapid motor 1.5 kw
  • Max weight between two centers 6000 kg
  • Overall Dimensions: 4,600 mm (L) x 2,150 mm (W) x 1,700 mm (H)
  • Weight approximately 9.2 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
