China CFW62100D/4000 Gap Bed Lathe

NLLDD030:

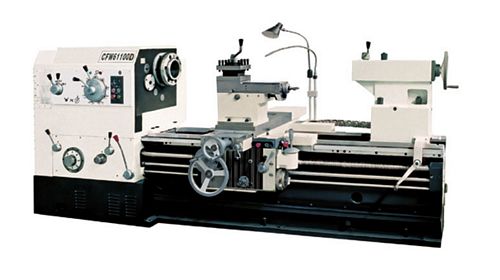

New, China CFW62100D/4000 Gap Bed Lathe

  • Between centers 4000mm
  • Swing over bed 1000mm
  • Swing over tool-post 800mm
  • Max turning length 3850mm
  • Span of guideway 600mm
  • Taper hole of spindle 1:20/150
  • Spindle bore Ø140mm
  • Range of spindle speeds 5.4-720 r/min, off 18
  • No. of longitudinal and transverse feeds: 64 each
  • Range of longitudinal feed (1:1) 0.1-1.52 mm/r; (16:1) 1.6-24.3 mm/r
  • Cross to longitudinal feed rate 1/2
  • Pitch of lead screw 12mm
  • Range of threads: Metric 1-240 mm (50 kinds); Inch 14-1 TPI (26 kinds); Module 0.5-120 mm (53 kinds); Diametric 28-1 DP (24 kinds)
  • Rapid speed of carriage 4000 mm/min
  • Max travel of cross tool-post 550mm; upper tool post 200mm
  • Section of tool shank 32 x 32 mm
  • Diameter/travel of tailstock quill: Ø125/250 mm
  • Taper of tailstock quill Morse no. 6
  • Main motor 11 kw
  • Rapid motor 1.1 kw
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
