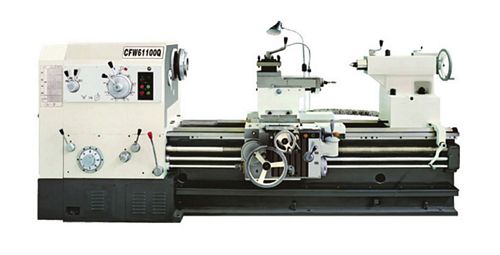

New, China CFW62100Q/3000 Gap Bed Lathe
- Between centers 3000mm
- Swing over bed 1000mm
- Swing over tool-post 800mm
- Max turning length 2850mm
- Span of guideway 600mm
- Taper hole of spindle 1:20/120
- Spindle bore Ø104mm
- Spindle nose C11
- Range of spindle speeds 5.4-720 r/min, off 18
- No. of longitudinal and transverse feeds: 64 each
- Range of longitudinal feed (1:1) 0.1-1.52 mm/r; (16:1) 1.6-24.3 mm/r
- Cross to longitudinal feed rate 1/2
- Pitch of lead screw 12mm
- Range of threads: Metric 1-240 mm (50 kinds); Inch 14-1 TPI (26 kinds); Module 0.5-120 mm (53 kinds); Diametric 28-1 DP (24 kinds)
- Rapid speed of carriage 4000 mm/min
- Max travel of cross tool-post 550mm; upper tool post 200mm
- Section of tool shank 32 x 32 mm
- Diameter/travel of tailstock quill: Ø125/250 mm
- Taper of tailstock quill Morse no. 6
- Main motor 11 kw
- Rapid motor 1.1 kw
- Overall Dimensions: 5,290 mm (L) x 1,625 mm (W) x 1,530 mm (H)
- Weight approximately 6.1 ton
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
