China CFW6280B/3000 Gap Bed Lathe

NLLDD012:

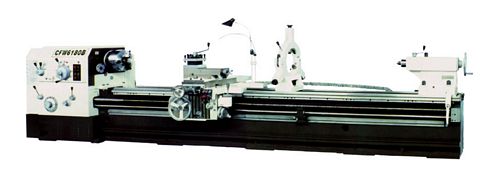

New, China CFW6280B/3000 Gap Bed Lathe

  • Between centers 3000mm
  • Swing over bed 800mm
  • Swing over tool-post 480mm
  • Max turning length 2850mm
  • Span of guideway 600mm
  • Taper hole of spindle 1:20/120
  • Spindle bore Ø104mm
  • Spindle nose C11
  • Range of spindle speeds 5.4-720 r/min, off 18
  • No. of longitudinal and transverse feeds: 64 each
  • Range of longitudinal feed (1:1) 0.1-1.52 mm/r; (16:1) 1.6-24.3 mm/r
  • Cross to longitudinal feed rate 1/2
  • Pitch of lead screw 12mm
  • Range of threads: Metric 1-240 mm (50 kinds); Inch 14-1 TPI (26 kinds); Module 0.5-120 mm (53 kinds); Diametric 28-1 DP (24 kinds)
  • Rapid speed of carriage 4000 mm/min
  • Max travel of cross tool-post 450mm; upper tool post 200mm
  • Section of tool shank 32 x 32 mm
  • Diameter/travel of tailstock quill: Ø100/250 mm
  • Taper of tailstock quill Morse no. 6
  • Main motor 11 kw
  • Rapid motor 1.1 kw
  • Overall Dimensions: 5,290 mm (L) x 1,525 mm (W) x 1,500 mm (H)
  • Weight approximately 5.5 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
