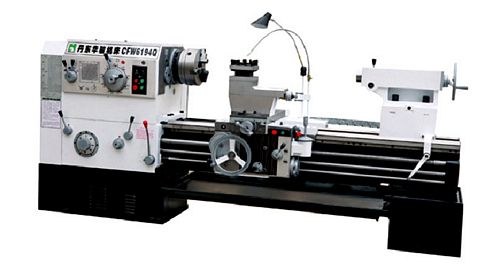

New, China CFW6294Q/1500 Gap Bed Lathe
- Between centers 1500mm
- Swing over bed 940mm
- Swing over tool-post 660mm
- Swing over gap 1110mm
- Max turning length 1050mm
- Spindle bore Ø104mm
- Taper of spindle nose 1:20
- Taper of center Morse no. 5
- Range of spindle speeds 6-800 rpm, off 18
- Longitudinal and cross feeds 64 kinds
- Rapid speed of carriage 4000 mm/min
- Max travel of cross tool-post 390mm; upper tool-post 200mm
- Diameter/travel of tailstock quill: Ø100/250 mm
- Taper of tailstock quill Morse no. 5
- Main motor 11 kw
- Rapid motor 1.1 kw
- Span of guideway 550mm
- Overall Dimensions: 3,525 mm (L) x 1,300 mm (W) x 1,575 mm (H)
- Weight approximately 4.1 ton
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
