Zhongyang Sams Lathe

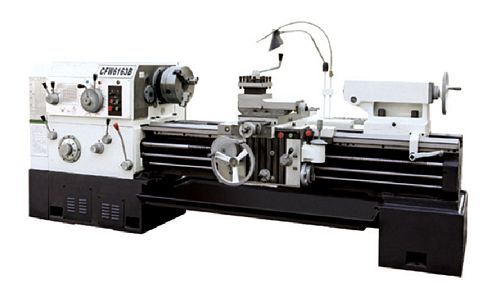

China CFW6263B/3000 Gap Bed Lathe


New, China CFW6263B/3000 Gap Bed Lathe

  • Between centers 3000mm
  • Swing over bed 630mm
  • Swing over tool-post 350mm
  • Swing over gap 800mm
  • Max turning length 2550mm
  • Spindle bore Ø104mm
  • Taper of spindle nose 1:20
  • Taper of center Morse no. 5
  • Range of spindle speeds 7-1000 rpm, off 18
  • Longitudinal and cross feeds 64 kinds
  • Rapid speed of carriage 4000 mm/min
  • Max travel of cross tool-post 390mm; upper tool-post 200mm
  • Diameter/travel of tailstock quill: Ø100/250 mm
  • Taper of tailstock quill Morse no. 5
  • Main motor 11 kw
  • Rapid motor 1.1 kw
  • Span of guideway 550mm
  • Overall Dimensions: 5,155 mm (L) x 1,300 mm (W) x 1,575 mm (H)
  • Weight approximately 4.7 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
