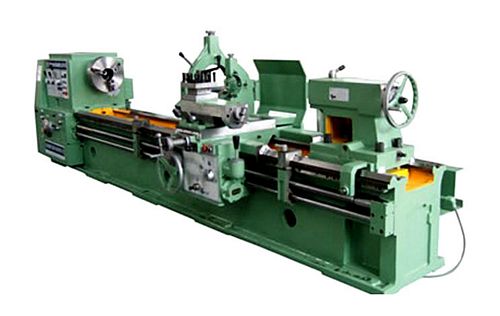

China CQW61100/4000 Gap Bed Lathe


New, China CQW61100/4000 Gap Bed Lathe

  • Between centers 4000mm
  • Max swing over bed 1000mm
  • Max swing over saddle 710mm
  • Swing diameter x width over gap 1200 x 350mm
  • Width of bed 600mm
  • Max workpiece weight between centers 3 ton
  • Spindle bore diameter 100mm
  • Taper of spindle bore Metric #120
  • Range of spindle speed 6-800 r/min (2 grade/stepless)
  • Spindle head type C type 11
  • Longitudinal / transversal feeds range: 0.1-12.2 mm/r / 0.05-6.6 mm/r
  • Carriage rapid moving speed 3.8 m/min
  • Range of threads: Metric 1-120mm (47 kinds); Inch 28-1/2 TPI (25 kinds); Module 0.5-60mm (45 kinds); Pitch 28-1 TPI (29 kinds)
  • Tool post transverse travel 449mm
  • Top tool post travel 200mm
  • Diameter / travel of tailstock spindle: 120mm / 200mm
  • Taper of tailstock spindle Morse #6
  • Bed width 600mm
  • Main motor 15 kw
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
