China CD6280/5000 Universal Lathe

NLLAM046:

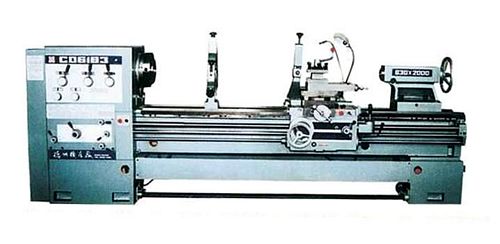

New, China CD6280/5000 Universal Lathe

  • Max length of workpiece 5000mm
  • Max swing over bed 800mm
  • Max swing over saddle 550mm
  • Max swing over gap 1000mm
  • Spindle bore diameter 120mm
  • Range of spindle speeds 12-1000 r/min (18 steps)
  • Range of metric thread 1-192mm (57 kinds)
  • Range of inch thread 2-24 TPI (30 kinds)
  • Range of module thread 0.25-48mm
  • Range of pitch thread 1-96 DP (37 steps)
  • Bed width 410mm
  • Main motor 7 kw
  • Coolant and other motor 875 w
  • Overall Dimensions: 6,655 mm (L) x 1,220 mm (W) x 1,700 mm (H)
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
