China CS6266Cx3000 Gap-Bed Lathe

NLLAM043:

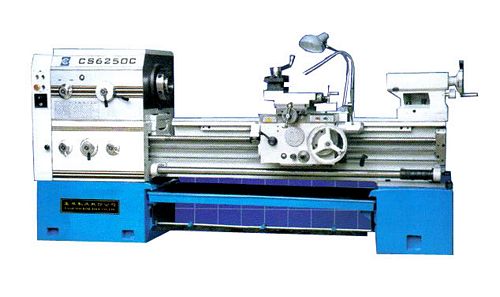

New, China CS6266Cx3000 Gap-Bed Lathe

  • Between centers 3000mm
  • Swing over bed 660mm
  • Swing over cross slide 420mm
  • Max turning diameter 400mm
  • Swing over gap 870mm
  • Gap width 240mm
  • Max machining length 2950mm
  • Spindle bore diameter 105mm
  • Spindle nose ISO 702/II No. 8 short cam lock type
  • Spindle speeds 36-1600 rpm, 12 steps
  • Travel of compound rest 145mm
  • Travel of cross slide 310mm
  • Tool section 25 x 25mm
  • X traverse speed: (50 Hz) 4.5 m/min; (60 Hz) 5.4 m/min
  • Z traverse speed: (50 Hz) 1.9 m/min; (60Hz) 2.3 m/min
  • X-axis feed range: 65 kinds, 0.063-2.52 mm/rev
  • Z-axis feed range: 65 kinds, 0.027 - 1.07 mm/rev
  • Metric threads 22 kinds, 1-14 mm
  • Inch threads 25 kinds, 28-2 TPI
  • Module threads 18 kinds, 0.5 - 7 mm
  • Diametric pitch threads 24 kinds, 4-56 TPI
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
