China CQ6280B/2000 High Speed Precision Gap Bed Lathe

NLLAM036:

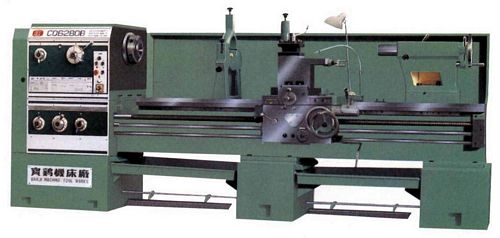

New, China CQ6280B/2000 High Speed Precision Gap Bed Lathe

  • Swing over bed 800mm (31.5")
  • Between centers 2000mm (80")
  • Swing over cross slide 560mm (22")
  • Swing in gap 1000mm (40")
  • Length in gap 240mm (9.5")
  • Width of bed 510mm
  • Spindle nose ISO702/II No. 8 Camlock
  • Spindle bore 82mm (3.3")
  • Taper of spindle bore 90mm (3.5"); 1:20
  • Spindle speeds 9 - 1400 rpm, 24 steps
  • Max output of spindle torque 1400 N.m
  • Max travel of compound rest 145mm (5 - 3/4")
  • Max travel of cross slide 320mm (12 - 5/8")
  • Leadscrew pitch 12mm or 2 TPI
  • Section of tool 25 x 25mm (1 x 1")
  • Longitudinal quick moving speed 4.5m (15’)/min 50 Hz; 5.4m (18’)/min 60 Hz
  • Crosswise quick moving speed 1.9m (6.3’)/min 50 Hz; 2.3m (7.6’)/min 60Hz
  • Longitudinal feeds 0.028 - 6.43mm (0.001 - 0.239 in) /rev (93 kinds)
  • Cross feeds 0.012 - 2.37mm (0.004 - 0.1032 in) /rev (93 kinds)
  • Threads range: Metric 0.5 - 224 mm (48 kinds); Inch 72 - 1/8 TPI (49 kinds)                                Module 0.5 - 122 MP (42 kinds); Diametric 56 - 1/4 DP (45 kinds)
  • Diameter of tailstock sleeve 75mm (3")
  • Morse taper of tailstock sleeve MT5
  • Travel of tailstock sleeve 150mm (5 - 29/32")
  • Cross adjustment ±15mm
  • Main motor 7.5 kW (10 HP) 3 PH 1450 rpm
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
