China CS6140x3000 Straight Bed Lathe

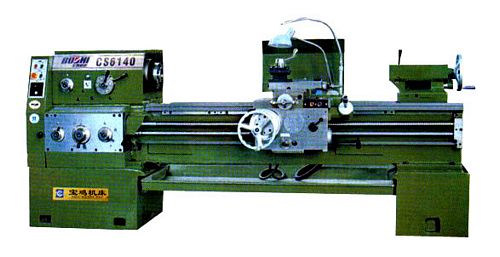

New, China CS6140x3000 Straight Bed Lathe

  • Between centres 3000mm
  • Swing over bed 400mm
  • Swing over cross slide 220mm
  • Max. turning length 2950mm
  • Spindle bore diameter 52mm
  • Taper of spindle bore Morse No. 6
  • Spindle nose ISO 702/III No. 6 Bayonet type
  • Spindle speeds 9 - 1600 rpm, 24 steps
  • Travel of compound rest 145mm
  • Travel of cross slide 320mm
  • Tool section 25 x 25mm
  • X-axis feedrate (50 Hz) 1.9 m/min; (60 Hz) 2.3 m/min
  • Z-axis feedrate (50 Hz) 4.5 m/min; (60 Hz) 5.4 m/min
  • X-axis feeds 93 kinds, 0.012 - 2.73 mm/rev
  • Z-axis feeds 93 kinds, 0.028 - 6.43 mm/rev
  • Metric threads 48 kinds, 0.5 - 224 mm
  • Inch threads 49 kinds, 72 - 1/8 TPI
  • Module threads 42 kinds, 0.5 - 112 mm
  • Diametric pitch threads 45 kinds, 56 - 1/4 DP
  • Diameter of tailstock sleeve 75mm; travel of tailstock sleeve 150mm
  • Taper of tailstock sleeve Morse No. 5
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used lathe (metal lathe, lathe turning machine, lathe turner, gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe, hobby lathe, screwcutting lathe, centre lathe, conventional lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
