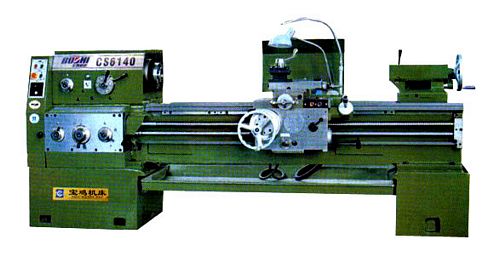

New, China CS6140x2000 Straight Bed Lathe
- Between centres 2000mm
- Swing over bed 400mm
- Swing over cross slide 220mm
- Max. turning length 1950mm
- Spindle bore diameter 52mm
- Taper of spindle bore Morse No. 6
- Spindle nose ISO 702/III No. 6 Bayonet type
- Spindle speeds 9 - 1600 rpm, 24 steps
- Travel of compound rest 145mm
- Travel of cross slide 320mm
- Tool section 25 x 25mm
- X-axis feedrate (50 Hz) 1.9 m/min; (60 Hz) 2.3 m/min
- Z-axis feedrate (50 Hz) 4.5 m/min; (60 Hz) 5.4 m/min
- X-axis feeds 93 kinds, 0.012 - 2.73 mm/rev
- Z-axis feeds 93 kinds, 0.028 - 6.43 mm/rev
- Metric threads 48 kinds, 0.5 - 224 mm
- Inch threads 49 kinds, 72 - 1/8 TPI
- Module threads 42 kinds, 0.5 - 112 mm
- Diametric pitch threads 45 kinds, 56 - 1/4 DP
- Diameter of tailstock sleeve 75mm; travel of tailstock sleeve 150mm
- Taper of tailstock sleeve Morse No. 5
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
