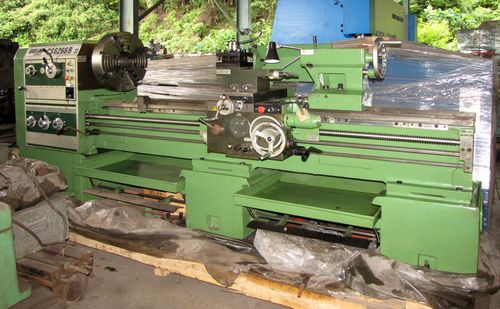

New, China CS6166Bx1000 Straight Bed Lathe
- Between centres 1000mm
- Swing over bed 660mm
- Swing over cross slide 420mm
- Max. turning length 950mm
- Spindle bore diameter 82mm
- Taper of spindle bore 1:20 Ø90
- Spindle nose ISO 702/II No. 8 short cam lock type
- Spindle speeds 9 - 1600 rpm, 24 steps
- Travel of compound rest 145mm
- Travel of cross slide 310mm
- Tool section 25 x 25mm
- X-axis feedrate (50 Hz) 1.9 m/min; (60 Hz) 2.3 m/min
- Z-axis feedrate (50 Hz) 4.5 m/min; (60 Hz) 5.4 m/min
- X-axis feeds 93 kinds, 0.012 - 2.73 mm/rev
- Z-axis feeds 93 kinds, 0.028 - 6.43 mm/rev
- Metric threads 48 kinds, 0.5 - 224 mm
- Inch threads 49 kinds, 72 - 1/8 TPI
- Module threads 42 kinds, 0.5 - 112 mm
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
