Sunshine Innovation Sams Lathe


China CS6266Bx1000 Gap-Bed Lathe

NLLAM008:

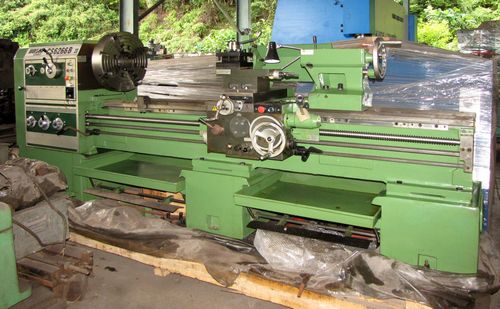

New, China CS6266Bx1000 Gap-Bed Lathe

  • Swing over cross slide 300mm
  • Swing over bed 660mm
  • Swing over cross slide 420mm
  • Swing over gap 870mm
  • Gap width 240mm
  • Max. turning length 950mm
  • Spindle bore diameter 82mm
  • Taper of spindle bore 1:20 Ø90
  • Spindle nose ISO 702/II No. 8 short cam lock type
  • Spindle speeds 9 - 1600 rpm, 24 steps
  • Travel of compound rest 145mm
  • Travel of cross slide 310mm
  • Tool section 25 x 25mm
  • X-axis feedrate (50 Hz) 1.9 m/min; (60 Hz) 2.3 m/min
  • Z-axis feedrate (50 Hz) 4.5 m/min; (60 Hz) 5.4 m/min
  • X-axis feeds 93 kinds, 0.012 - 2.73 mm/rev
  • Z-axis feeds 93 kinds, 0.028 - 6.43 mm/rev
  • Metric threads 48 kinds, 0.5 - 224 mm
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used lathe (gap bed lathe, straight bed lathe, facing lathe, engine lathe, center lathe, turning lathe), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
