Zhongyang Sams CNC Lathe

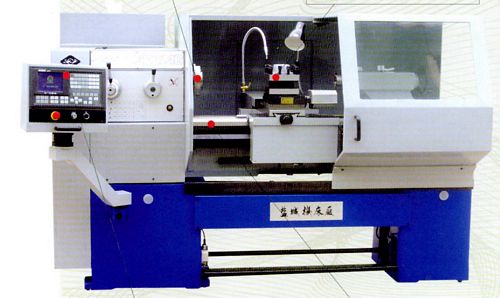

China CD6136B CNC Lathe

NLCYC005:

New, China CD6136B CNC Lathe

  • Max. swing over bed 360mm
  • Max. swing cross slide 185mm
  • Centre distance 1000,1500, 2000mm
  • Max. swing over gap 490 mm
  • Effective length of gap 260mm
  • Bed width 330 mm
  • Headstock:
  • Spindle hole 65mm
  • Spindle nose: ISO-C6 or ISO-D
  • Spindle taper :  Metric 70 mm
  • Spindle speeds (Number ) 22 - 1800rpm(15 Steps)
  • Rapid travelling speed of carriage  5m/mmin
  • Carriage:
  •     Cross slide travel 300 mm
  •     Compound rest travel 130 mm
  • Taper of tailstock sleeve: Morse 5
  • Diameter of tailstock sleeve 65mm
  • Travel of tailstock sleeve120mm
  • Main drive motor 4.0 kW or 5.5 kW
  • Coolant pump motor 0.125kW
  • Rapid traverse motor 0.12kW
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used cnc lathe (cnc lathe, cnc turning machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
