Zhongyang Sams CNC Lathe


China VIVA T2C-500 CNC Lathe

NLCSY205:

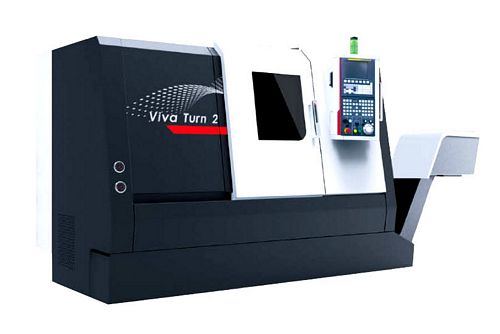

New, China VIVA T2C-500 CNC Lathe

  • Max cutting length 500mm
  • Max swing diameter 560mm
  • Max cutting diameter 280mm
  • Max swing diameter over cross carriage 360mm
  • Spindle nose A2-6
  • Spindle hole diameter 65mm
  • Max bar diameter 50mm
  • Spindle speed range 30-4500 r/min
  • Chuck diameter 8"
  • Spindle max output torque 235 N.m
  • X/Y axis rapid traverse 30 m/min
  • X axis travel 200mm
  • Z axis travel 560mm
  • Tailstock body travel 450mm
  • Tool size 25 x 25mm / Ø32mm
  • Machining accuracy IT6
  • Positioning accuracy: (X/Z) 0.01/0.01 mm
  • Repeatability: (X/Z) 0.004/0.005 mm
  • Max load: (disc/shaft) 200/250 kg
  • Center height 1050mm
  • Main motor 11 kw
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used cnc lathe (cnc lathe, cnc turning machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
