China CAK100130Q Flat Bed CNC Lathe

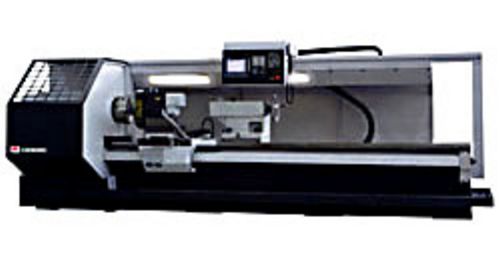

New, China CAK100130Q Flat Bed CNC Lathe

  • Max workpiece length 1500mm
  • Max cutting length 1300mm
  • Swing over bed 1000mm
  • Span of guideway 600mm
  • Cutting diameter 1000mm
  • Swing over saddle 590mm
  • Spindle nose D11
  • Manual chuck diameter 500mm
  • Inner taper of spindle nose 1:20
  • Spindle bore 104mm
  • Spindle speed: 17-100, 38-222, 76-445, 180-1000 r/min
  • Center height: From bed 510mm; Ground 1240mm
  • Tool post traverse 4/8 m/min
  • Time for indexing turret one step/full step: 5.6 s
  • Tool post rotative positioning repeatability accuracy ±2"
  • Stroke of X axis 505mm; Z axis 1300mm
  • Mode of tool post: vertical 4-station
  • Workpiece accuracy IT7
  • Surface roughness Ra1.6
  • Diameter/travel of tailstock sleeve: 125mm/250mm
  • Bore taper of tailstock sleeve Morse No. 5
  • Size of tool shank 40 x 40mm
  • Main motor 15 kW
  • Total power 30 KVA
  • Overall Dimensions: 5,550 mm (L) x 2,280 mm (W) x 2,670 mm (H)
  • Weight approximately 6.1 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used cnc lathe (cnc lathe, cnc turning machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
