China CAK80285 Flat Bed CNC Lathe

NLCSY200:

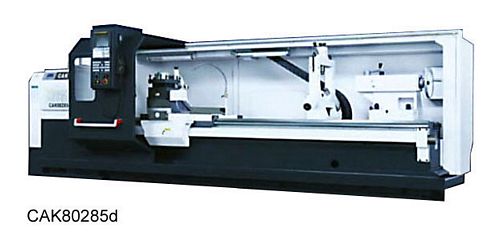

New, China CAK80285 Flat Bed CNC Lathe

  • Max workpiece length 3000mm
  • Max cutting length 2850mm
  • Swing over bed 800mm
  • Span of guideway 600mm
  • Cutting diameter 800mm
  • Swing over saddle 480mm
  • Spindle nose D11
  • Manual chuck diameter 325mm
  • Inner taper of spindle nose 1:20
  • Spindle bore 104mm
  • Spindle speed: 17-100, 38-222, 76-445, 180-1000 r/min
  • Center height: From bed 400mm; Ground 1130mm
  • Tool post traverse 4/8 m/min
  • Time for indexing turret one step/full step: 3.9 s
  • Tool post rotative positioning repeatability accuracy ±2"
  • Stroke of X axis 420mm; Z axis 2850mm
  • Mode of tool post: vertical 4-station
  • Workpiece accuracy IT7
  • Surface roughness Ra1.6
  • Diameter/travel of tailstock sleeve: 100mm/250mm
  • Bore taper of tailstock sleeve Morse No. 5
  • Size of tool shank 32 x 32mm; Bore Ø32mm
  • Main motor 15 kW
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used cnc lathe (cnc lathe, cnc turning machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
