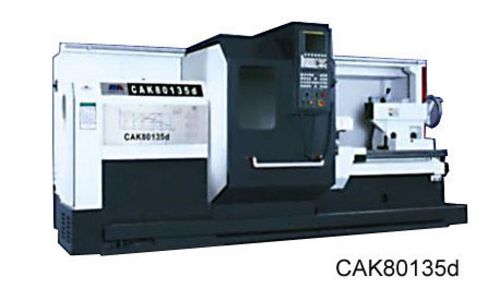

New, China CAK80135 Flat Bed CNC Lathe
- Max workpiece length 1500mm
- Max cutting length 1350mm
- Swing over bed 800mm
- Span of guideway 600mm
- Cutting diameter 800mm
- Swing over saddle 480mm
- Spindle nose D11
- Manual chuck diameter 325mm
- Inner taper of spindle nose 1:20
- Spindle bore 104mm
- Spindle speed: 17-100, 38-222, 76-445, 180-1000 r/min
- Center height: From bed 400mm; Ground 1130mm
- Tool post traverse 4/8 m/min
- Time for indexing turret one step/full step: 3.9 s
- Tool post rotative positioning repeatability accuracy ±2"
- Stroke of X axis 420mm; Z axis 1350mm
- Mode of tool post: vertical 4-station
- Workpiece accuracy IT7
- Surface roughness Ra1.6
- Diameter/travel of tailstock sleeve: 100mm/250mm
- Bore taper of tailstock sleeve Morse No. 5
- Size of tool shank 32 x 32mm; Bore Ø32mm
- Main motor 15 kW
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
