Sunshine Innovation Sams CNC Lathe

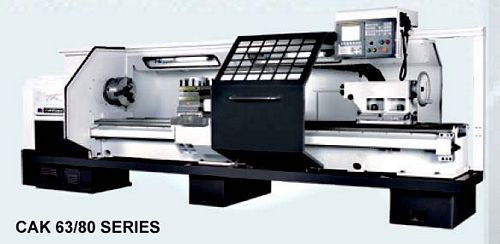

China CAK80485d CNC Lathe

NLCSY191:

New, China CAK80485d CNC Lathe

  • Max workpiece length 5000mm
  • Max cutting length 4850mm
  • CNC Control: Fanuc 0i-Mate
  • Swing Over Bed 800 mm
  • Span of guideway 600mm
  • Cutting diameter 800mm
  • Swing over saddle 480mm
  • Spindle nose D11
  • Manual 3-jaw Chuck Diameter 325 mm
  • Inner taper of spindle nose 1:20
  • Spindle bore 104mm
  • Spindle Speed: 17-1000 RPM (auto 4 steps & stepless per step)
  • Center height: From bed 400mm; Ground 1130mm
  • Tool post traverse 4/8 m/min
  • Time for indexing turret one step/full step: 3.9 s
  • Tool post rotative positioning repeatability accuracy 1.5"
  • Stroke of X axis 420mm; Z axis 4850mm
  • Workpiece accuracy IT6 - IT7
  • Surface roughness Ra1.6
  • Diameter/stroke of tailstock sleeve: 100/250mm
  • Bore taper of tailstock sleeve Morse No. 5
  • Mode of tool post: vertical 4-station
  • Size of tool shank: Square 32 x 32mm; Bore Ø32mm
  • Main motor 11 kW
  • Total power 22 kva
  • Machine load bearing 3000/4850 kg
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used cnc lathe (cnc lathe, cnc turning machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
