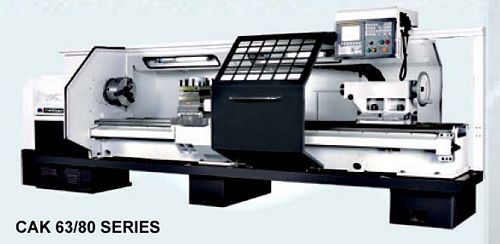

China CAK80285d CNC Lathe

NLCSY190:

New, China CAK80285d CNC Lathe

  • Max Workpiece Length 3000 mm
  • Max Cutting Length 2850 mm
  • CNC Control: Fanuc 0i-Mate
  • Swing Over Bed 800 mm
  • Max Cutting Diameter 800 mm
  • Swing Over Carriage 480 mm
  • Manual 3-jaw Chuck Diameter 325 mm
  • Spindle Bore Dia 104 mm
  • Bore Taper of Spindle Nose 1:20
  • Spindle Speed: 17-1000 RPM (auto 4 steps & stepless per step)
  • Toolpost Traverse X/Z: 4/8 m/min
  • Time for Indexing Turret One Step/Full Step: 3.9 s
  • Stroke of X Axis 420 mm
  • Stroke of Z Axis  2850 mm
  • Dia of Tailstock Quill 100 mm
  • Stroke of Tailstock Quill 250 mm
  • Tailstock Taper MT5
  • Mode of tool post: vertical 4-station
  • Toolpost Rotative Positioning Repeatability Accuracy 1.5"
  • Workpiece Accuracy IT6-IT7
  • Surface Roughness Ra1.6
  • Size of Tool Shank 32 x 32 mm (Square), 32 mm Dia (Bore)
  • Main Motor 11 kW
  • Total Power 22 kva
  • Machine Load-bearing 3000/2850 kg
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used cnc lathe (cnc lathe, cnc turning machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
