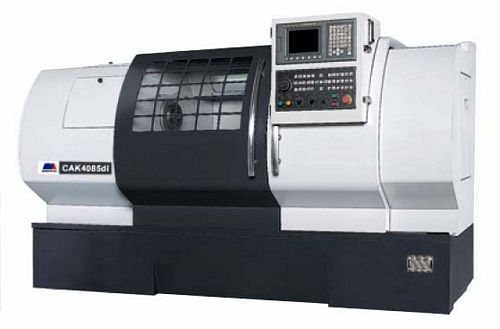

China CAK4085Dj CNC Lathe


New, China CAK4085Dj CNC Lathe

  • Max workpiece length 1000mm
  • Swing over bed 400mm
  • Max turning diameter Ø400mm
  • CNC control: Fanuc 0i-Mate TD
  • Swing over saddle 200mm
  • Max turning length 850mM
  • Manual 3 Jaw chuck 250mm
  • Spindle nose A6
  • Diameter of spindle bore Ø53mm
  • Range of spindle speed 0 - 1600 RPM
  • Main motor 5.5 kW
  • Torque of servo motor for X-axis 4 Nm, Z-axis 6 Nm
  • Diameter and pitch of ball screw rod for X-axis Ø20 x 4 mm, Z-axis Ø40 x 6 mm
  • Rapid speed for X-axis 3.8 m/min, Z-axis 7.8 m/min
  • Travel of X-axis 220mm, Z-axis 850mm
  • Diameter of tailstock sleeve 60mm
  • Travel of tailstock sleeve 140mm
  • Taper hole of tailstock sleeve Morse No. 4
  • Form of turret 4 station
  • Tool cross section 20 x 20 mm
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used cnc lathe (cnc lathe, cnc turning machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
