China CAK4085Di CNC Lathe

NLCSY187:

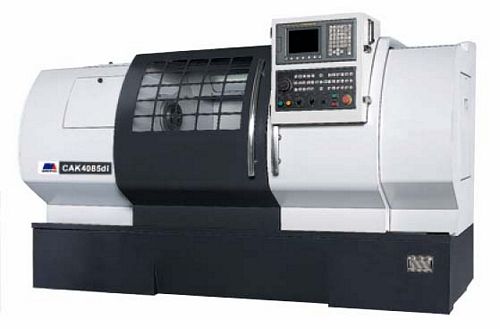

New, China CAK4085Di CNC Lathe

  • Max swing over bed 400mm
  • Max swing over saddle
  • CNC control: Fanuc 0i-Mate
  • Max cutting over slide 200mm
  • Max cutting diameter 400mm
  • Max turning length 850mm
  • Spindle bore Ø53
  • Spindle nose A6
  • Spindle speed 200-1600 rpm
  • Diameter / travel of tailstock quill 60mm / 140mm
  • Taper of tailstock quill Morse No. 4
  • Max travel of X axis 220mm
  • Max travel of Z axis 850mm
  • Rapid speed (X/Z axis) 6/10 mm
  • No. of tools in turret 4
  • Size of tool shank: 20 x 20 mm (ex. circle tool); Ø32mm (boring tool)
  • Repeatability of X/Z axis 0.012 / 0.016
  • Work accuracy IT6 - IT7
  • Main motor 7.5 kW
  • Total power 15 KVA
  • Overall Dimensions: 2,470 mm (L) x 1,400 mm (W) x 1,600 mm (H)
  • Weight approximately 2.0 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used cnc lathe (cnc lathe, cnc turning machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
