Zhongyang Sams CNC Lathe


China CAK3665Dj CNC Lathe

NLCSY186:

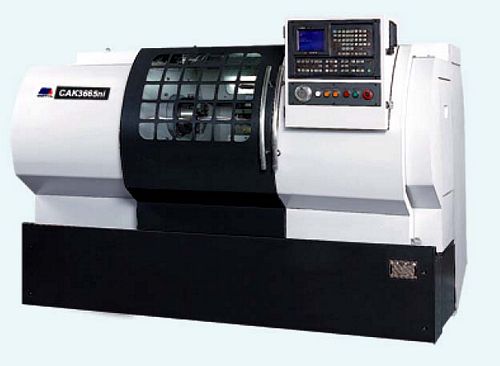

New, China CAK3665Dj CNC Lathe

  • Swing over bed 360mm
  • Swing over saddle 180mm
  • CNC Control: Fanuc 0i-Mate TD
  • Manual 3 Jaw chuck 200mm
  • Max cutting diameter over slide 180mm
  • Max turning length 650mm
  • Spindle bore Ø53mm
  • Spindle nose A6
  • Spindle speed 0 - 2000 RPM
  • Diameter of tailstock quill Ø60mm
  • Travel of tailstock quill 140mm
  • Taper of tailstock quill Morse No. 4
  • Max travel of X axis 220mm
  • Max travel of Z axis 650mm
  • Tool post rapid traverse (X/Z): axis 3.8/7.8 m/min
  • Size of tool shank 20 x 20 mm
  • No. of tool stations: vertical 4 positions
  • Repeatability of X/Z axis 0.012/0.016
  • Work accuracy IT6 - IT7
  • Main motor 5.5 kW
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used cnc lathe (cnc lathe, cnc turning machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
