Zhongyang Sams CNC Lathe


China CAK0830 CNC Lathe

NLCSY153:

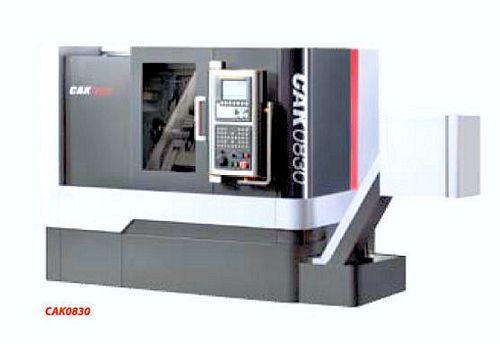

New, China CAK0830 CNC Lathe

  • Max turning diameter 80mm
  • Max turning length 100mm
  • Max swing over bed 300mm
  • Max swing over saddle 80mm
  • Spindle nose A2-5
  • Front bearing bore diameter 90mm
  • Spindle speed 5000 r/min
  • Rated spindle torque 41.8 Nm
  • Max spindle torque 62 Nm
  • Spindle bore diameter 56mm
  • Rapid speed of X and Y axis 20 m/min
  • No. of tool positions 5 - 8
  • Size of tool shank 16 x 16 mm
  • Max diameter of boring hole 25mm
  • Positioning accuracy: X axis 13µm, Z axis 18µm
  • Repeatability: X axis 7µm, Z axis 8 µm
  • Overall Dimensions: 2,080 mm (L) x 1,665 mm (W) x 1,750 mm (H)
  • Weight approximately 2.0 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used cnc lathe (cnc lathe, cnc turning machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
