China CAK50100 CNC Lathe

NLCSY151:

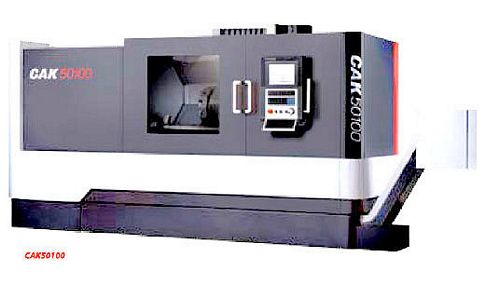

New, China CAK50100 CNC Lathe

  • Max turning diameter 500mm
  • Max turning length 1000mm
  • Max swing over bed 590mm
  • Max swing over saddle 330mm
  • Spindle nose A2-8
  • Front bearing bore diameter 120mm
  • Spindle speed 3500 r/min (western made), 3000 r/min (domestic)
  • Rated spindle torque 301 Nm (558 r/min)
  • Max spindle torque 422 Nm (558 r/min, 30 min)
  • Spindle bore diameter 80mm
  • Rapid speed of X and Y axis 12/18 m/min
  • Taper bore of tailstock sleeve MT-5
  • Travel of tailstock sleeve 120mm
  • No. of turret station 12 (optional 8)
  • Max size of tool shank 25 x 25 mm
  • Max diameter of boring hole 40mm
  • Positioning accuracy: X axis 16/12 µm; Z axis 25/20 µm
  • Repeatability: X axis 7/6 µm; Z axis 10/8 µm
  • Overall Dimensions: 3,600 mm (L) x 1,850 mm (W) x 2,050 mm (H)
  • Weight approximately 6.0 ton
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used cnc lathe (cnc lathe, cnc turning machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
