China HTC2050n Slant Bed CNC Lathe (Standard Type)

NLCSY149:

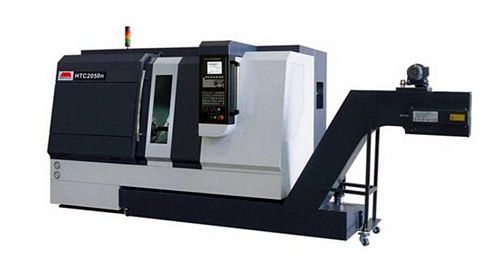

New, China HTC2050n Slant Bed CNC Lathe (Standard Type)

  • Max swing over bed 480mm
  • Max cutting diameter 260mm (disc)/200mm (shaft)
  • CNC control: FANUC 0i-mate TD
  • Max cutting length 500mm
  • Max swing over slide 300mm
  • Spindle bore diameter 52mm
  • Chuck diameter 8"
  • Spindle nose A2-6
  • Max bar diameter through hollow chuck 38mm
  • Main motor (30 minutes rated value) 11 kW
  • Main motor (continuous rated value) 9 kW
  • Spindle speed: stepless
  • Range of spindle speed (servo main motor): 50 - 4000 r/min
  • Max travel: X axis 152mm; Z axis 530mm
  • Rapid speed (X/Z axis) rolling guideway: 20/30 mm (import linear lead screw)
  • Diameter/travel of tailstock sleeve 80/100 mm
  • Taper bore of tailstock sleeve Morse No. 4
  • Travel of tailstock body 360mm
  • Form of turret: horizontal (8 station)
  • Size of tool shank 25 x 25 mm
  • Diameter of tool hole: 32/25/20/16 mm
  • Positioning accuracy of turret (arc-second): ±4"
  • Repositioning accuracy of turret (arc-second): ±1.6"
  • Positioning accuracy (X/Z axis): 0.010/0.012 mm
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used cnc lathe (cnc lathe, cnc turning machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
