Zhongyang Sams CNC Lathe

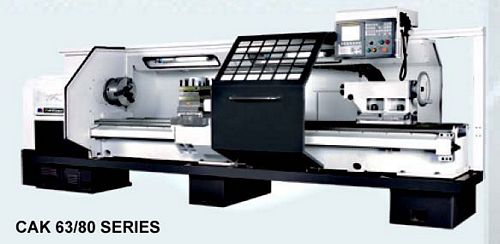

China CAK80135d CNC Lathe


New, China CAK80135d CNC Lathe

  • Max workpiece length 1500mm
  • Max cutting length 1350mm
  • Swing over bed 800mm
  • CNC Control: Fanuc 0i-Mate
  • Span of guideway 600mm
  • Cutting diameter  800mm
  • Swing over saddle 480mm
  • Spindle nose D11
  • Manual 3 Jaw chuck diameter 325mm
  • Inner taper of spindle nose 1:20
  • Spindle bore 104mm
  • Range of spindle speed: 17-100 rpm; 38-222 rpm; 76-445 rpm; 180-1000 rpm
  • No. of spindle speed: Auto 4-gearshift (stepless)
  • Center height: From bed 400mm; Ground 1130mm
  • Tool post traverse 4/8 m/min
  • Time for indexing turret one step/full step: 3.9 s
  • Repeatability of turret index ±2
  • Stroke of X axis 420mm; Z axis 1350mm
  • Mode of tool post: vertical 4-station
  • Workpiece accuracy IT7
  • Surface roughness Ra1.6
  • Diameter/stroke of tailstock sleeve: 100/250mm
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.

If you require additional information on this machine or on any other new or used cnc lathe (cnc lathe, cnc turning machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
