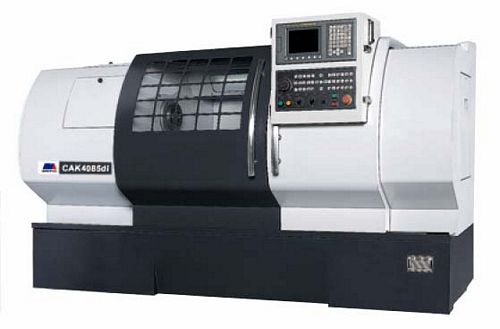

New, China CAK4085Ni CNC Lathe
- Max workpiece length 1000mm
- Swing over bed 400mm
- Max turning diameter Ø400mm
- CNC control: GSK 980TD
- Swing over saddle 200mm
- Max turning length 850mm
- Manual 3 Jaw chuck 250mm
- Spindle nose A6
- Diameter of spindle bore Ø53mm
- Range of spindle speed 0 - 1600 RPM
- Main motor 7.5 kW
- Torque of servo motor for X-axis 4 Nm, Z-axis 6 Nm
- Diameter and pitch of ball screw rod for X-axis Ø20 x 4 mm, Z-axis Ø40 x 6 mm
- Rapid speed for X-axis 3.8 m/min, Z-axis 7.8 m/min
- Travel of X-axis 220mm, Z-axis 850mm
- Diameter of tailstock sleeve 60mm
- Travel of tailstock sleeve 140mm
- Taper hole of tailstock sleeve Morse No. 4
- Form of turret 4 station
- Tool cross section 20 x 20 mm
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
