China FTL100130di Flat Bed CNC Lathe

NLCSY146:

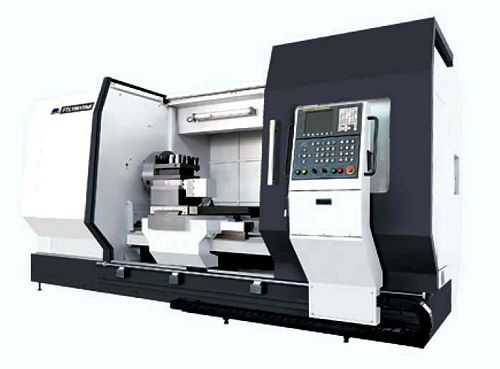

New, China FTL100130di Flat Bed CNC Lathe

  • Swing over bed 1000mm
  • Max cutting length 1300mm
  • Max cutting diameter 1000mm
  • Swing over saddle 590mm
  • Spindle bore Ø104, Nose D11
  • Chuck Ø500
  • Inner taper of spindle nose 1:20,  Ø120
  • Spindle speed range 17- 100, 38 - 222, 76 - 445, 180 - 1000 r/min
  • Center height 510/1240mm
  • Tool post traverse X/Z: 4/8 m/min
  • Mode of tool post: vertical 4-station
  • Size of tool shank 40 x 40 mm
  • Time for indexing turret one step/full step 5.6s
  • Tool post rotative positioning repeatability accuracy ±1.8
  • Stroke of X-axis 505mm, Z-axis 1310mm
  • Repeatability of positioning accuracy: (X) 0.013mm, (Z) 0.02mm
  • Positioning accuracy: (X) 0.035mm, (Z) 0.045mm
  • Workpiece accuracy IT7
  • Surface roughness Ra1.6
  • Diameter/stroke of tailstock sleeve 125/250mm
  • Bore taper of tailstock sleeve Morse No. 5
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used cnc lathe (cnc lathe, cnc turning machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
