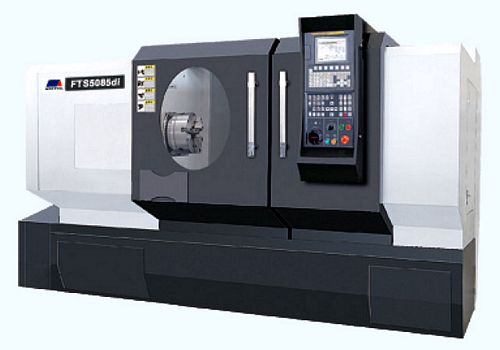

New, China FTS5085 CNC Lathe
- Max workpiece length 890mm
- Max cutting length 850mm
- Swing over bed 500mm
- Span of guideway 400mm
- Max cutting diameter 500mm
- Swing over saddle 300mm
- Spindle bore 70mm, Nose A8
- Manual chuck Ø250
- Inner taper of spindle nose 1:20/80
- Spindle speed 30 - 2500 r/min (stepless)
- Center height: From bed 250mm; Ground 1130mm
- Tool post traverse: 5/10 m/min
- Time for indexing turret one step/full step: 2.4/2.2/1.6
- Tool post rotative positioning repeatability accuracy 0.008mm
- Stroke of X axis 250mm; Z axis 850mm
- Repeatability of positioning accuracy: (X axis) 0.008mm; (Z axis) 0.01mm
- Positioning accuracy: (X axis) 0.015mm; (Z axis) 0.02mm
- Workpiece accuracy IT6
- Surface roughness Ra1.6
- Diameter/stroke of tailstock sleeve 75/150mm
- Bore taper of tailstock sleeve Morse No. 5
- Mode of tool post: vertical 4-station
- Size of tool shank: Square 25 x 25 mm; Bore Ø32, Ø25
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
