China CAK6185i Flat Bed CNC Lathe

NLCSY139:

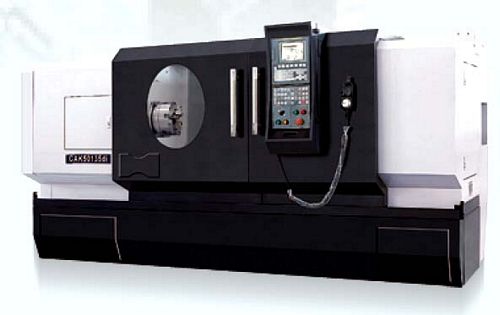

New, China CAK6185i Flat Bed CNC Lathe

  • Max workpiece length 890mm
  • Max cutting length 850mm
  • Swing over bed 610mm
  • Span of guideway 400mm
  • Max cutting diameter 610mm
  • Swing over saddle 370mm
  • Manual chuck Ø250
  • Inner taper of spindle nose 1:20
  • Spindle bore Ø70mm, Nose A8
  • Spindle speed: 22-220 r/min, 71-710 r/min, 215-2200 r/min
  • Center height: From bed 305mm; Ground 1185mm
  • Tool post traverse 5/10 m/min
  • Time for indexing turret one step/full step 2.4 s
  • Tool post rotative positioning repeatability accuracy ±1.5"
  • Stroke of X axis 305mm
  • Stroke of Z axis 850mm
  • Workpiece accuracy IT6 - IT7
  • Surface roughness Ra1.6
  • Diameter/travel of tailstock sleeve 75mm/150mm
  • Bore taper of tailstock sleeve Morse No. 5
  • Mode of tool post: vertical 4-station
  • Size of tool shank: Square 25 x 25 mm; Bore Ø25
  • Main motor 7.5 kW
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used cnc lathe (cnc lathe, cnc turning machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
