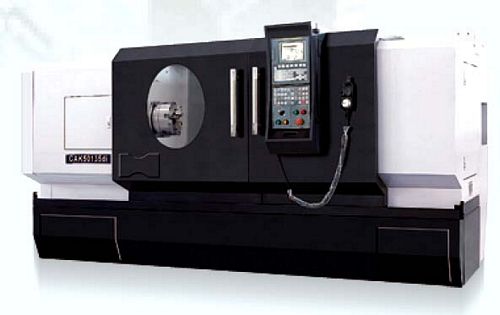

China CAK50135di Flat Bed CNC Lathe

NLCSY132:

New, China CAK50135i Flat Bed CNC Lathe

  • Max workpiece length 1390mm
  • Max cutting length 1350mm
  • Swing over bed 500mm
  • Span of guideway 400mm
  • Max cutting diameter 500mm
  • Swing over saddle 300mm
  • Manual chuck Ø250
  • Inner taper of spindle nose 1:20
  • Spindle bore Ø70mm, Nose A8
  • Spindle speed: 22 - 220, 71 - 710, 215 - 2200 r/min (auto 3 step)
  • Center height: From bed 250mm; Ground 1130mm
  • Tool post traverse 5/10 m/min
  • Time for indexing turret one step/full step 2.4 s
  • Tool post rotative positioning repeatability accuracy 1.5"
  • Stroke of X axis 250mm
  • Stroke of Z axis 1350mm
  • Workpiece accuracy IT6 - IT7
  • Surface roughness Ra1.6 µm
  • Diameter/stroke of tailstock sleeve 75/150 mm
  • Bore taper of tailstock sleeve Morse No. 5
  • Mode of tool post: vertical 4-station
  • Size of tool shank: Square 25 x 25 mm; Bore Ø32,  Ø25
  • Main motor 7.5 kW
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used cnc lathe (cnc lathe, cnc turning machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
