China CAK80135Di CNC Lathe

NLCSY116:

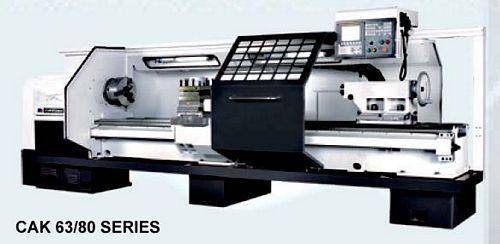

New, China CAK80135Di CNC Lathe

  • Max workpiece length 1500mm
  • Max cutting length 1350mm
  • Swing over bed 800mm
  • CNC Control: Fanuc 0i-Mate
  • Span of guideway 600mm
  • Vertical tool post: Cutting diameter 800mm; Swing over saddle 480mm
  • Horizontal tool post: Cutting diameter 600mm; Swing over saddle 440mm
  • Spindle nose D11
  • Chuck: Manual Ø325; Hydraulic 304 or 381
  • Inner taper of spindle nose 1:20
  • Spindle bore 104mm
  • Spindle speed: auto 4 step
  • Spindle speed range 17 - 100, 38 - 222 r/min; 76 - 445, 180 - 1000 r/min
  • Center height: From bed 400mm; Ground 1130mm
  • Tool post traverse 4/8 m/min
  • Time for indexing turret one step/full step: 3.9/3.6/1.7/1.6
  • Tool post rotative positioning repeatability accuracy 0.008mm
  • Stroke of X axis 420mm; Z axis 1350mm
  • Workpiece accuracy IT6 - IT7
  • Surface roughness Ra1.6
  • Diameter/stroke of tailstock sleeve: 100/250mm
  • Bore taper of tailstock sleeve Morse No. 5
  • Mode of tool post: Square 32 x 32mm; Bore Ø32mm
  • Main motor 15 kW
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used cnc lathe (cnc lathe, cnc turning machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
