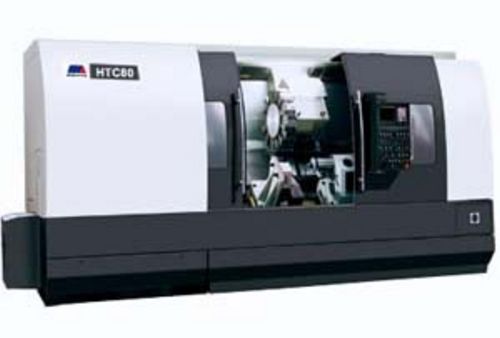

New, China HTC80100Z CNC Lathe
- Swing over bed 1000mm
- Max turning length 1000mm
- Swing over saddle 780mm
- Chuck diameter Ø400mm
- Angle of bed to horizontal 45°
- Dimension of disc-parts to be machined: Ø630 x 300 mm
- Spindle speeds (domestic bearing):50 - 1400 r/min
- Imported bearing 50 - 1800 r/min
- Type of spindle nose A2-15
- Spindle bore diameter Ø90mm
- X/Z axis rapid traverse 8/10 m/min
- No. of tool positions 12
- Dimension of tool hole Ø50mm
- Dimension of standard tool 32mm
- Diameter of tailstock quill Ø160
- Stroke of tailstock quill 120mm
- Tailstock quill taper MT5
- X/Z axis motor torque 22/30 N/m
- Positioning accuracy of power tool head ±4"
- Repeatability of power tool head ±1.6"
- Index accuracy of C-axis 0.001° (360° random angle)
- Position accuracy of C-axis 48
- Repeatability of C-axis 24
- Max diameter of tapping M4.5 - M22 mm
- Max diameter of milling 3 - 26 mm
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
