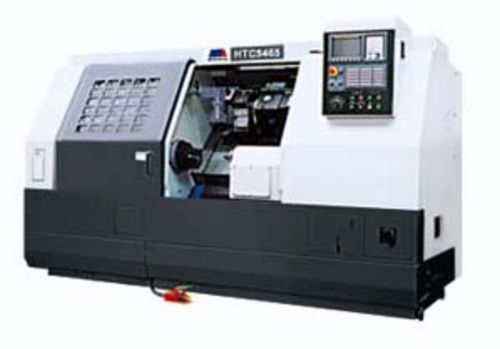

New, China HTC50150Z CNC Lathe
- Swing over bed 600mm
- Max turning length 1500mm
- Swing over saddle 400mm
- Chuck diameter Ø304mm
- Angle of bed to horizontal 45°
- Dimension of disc-parts to be machined: Ø500 x 200 mm
- Spindle speeds (domestic bearing):50 - 1600 r/min
- Imported bearing 50 - 2000 r/min
- Type of spindle nose A2-8
- Spindle bore diameter Ø75mm
- X/Z axis rapid traverse 8/12 m/min
- No. of tool positions 8 (12 optional)
- Dimension of tool hole Ø40mm
- Dimension of standard tool 25mm
- Diameter of tailstock quill Ø125 (Ø140mm)
- Stroke of tailstock quill 150mm (160mm)
- Tailstock quill taper MT5
- X/Z axis motor torque 12/22 N/m
- Positioning accuracy of power tool head ±4"
- Repeatability of power tool head ±1.6"
- Index accuracy of C-axis 0.001° (360° random angle)
- Position accuracy of C-axis 36
- Repeatability of C-axis 18
- Max diameter of tapping M4.5 - M16 mm
- Max diameter of milling 2 - 20 mm
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
