China HTC2050Z CNC Lathe

NLCSY103:

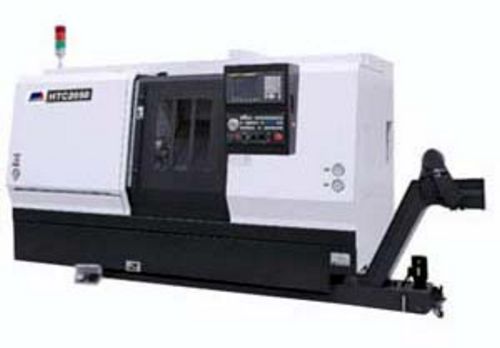

New, China HTC2050Z CNC Lathe

  • Control: Fanuc Oi-TD
  • Swing Over Bed 400mm
  • Max Turning Length 500mm
  • 1 x Straight Live Tooling
  • 1 x Right Angle Live Tooling
  • Swing Over Saddle 250mm
  • Chuck Diameter 210mm
  • Angle of Bed to Horizontal 45°
  • Dimension of Disc-Parts to Be Machined: Ø200 x 100 mm
  • Spindle Speeds 45 - 4000 r/min
  • Type of Spindle Nose A2-5
  • Spindle Bore Diameter Ø55mm
  • X/Z Axis Rapid Traverse 10/12 m/min
  • No. of Tool Positions 12
  • Dimension of Tool Hole Ø30mm
  • Dimension of Standard Tool 20mm
  • Diameter of Tailstock Quill Ø80mm
  • Stroke of Tailstock Quill 100mm
  • Tailstock Quill Taper MT5
  • X/Z Axis Motor Torque 7/7 N/m
  • Positioning Accuracy of Power Tool Head ±4"
  • Repeatability of Power Tool Head ±1.6"
  • Index Accuracy of C-Axis 0.001° (360° Random Angle)
  • Max Diameter of Tapping M4.5 - M12 mm
  • Max Diameter of Milling 2 - 16 mm
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used cnc lathe (cnc lathe, cnc turning machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
