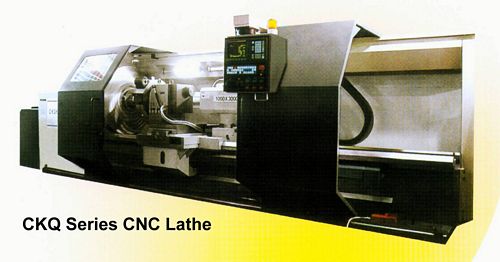

New, China CKQ61125A CNC Lathe
- Swing Over Bed 1250 mm
- Swing Over Saddle 820 mm
- Max Workpiece Length 1500 / 3000 / 5000 / 8000 / 11000 mm
- Max Turning Length 1490 / 2900 / 4900 / 7900 / 10900 mm
- Spindle Bore and Nose 130 mm, A2-15
- Front Taper Hole of Spindle Metric 140
- Spindle Speeds 5-500 RPM (3 steps, stepless per step)
- Power of Main Motor 22/26 kW
- Manual 4-Jaw Chuck 1000 mm
- Rapid Traverse Axis X & Z: 6 m/min (Z=5 m/min if longer than 5000mm)
- Travel of X Axis 630 mm
- Travel of Z Axis 1500 / 3000 / 5000 / 8000 / 11000 mm
- Tailstock Quill Diameter 160 mm
- Tailstock Quill Travel 300 mm
- Tailstock Quill Taper MT 6
- Max Thrust of Tailstock Quill 30000 N
- Turret Vertical 4-Position, Model SLD-260A
- Index Time of Turret 6 s
- Machining Accuracy IT6-IT7
- Section of Tool Shank 40x40 mm
- Surface Roughness of Workpiece Ra 1.6 micron
- Max Weight of Workpiece: 1000 kg (Disc type), 5000 kg (Shaft type)
The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.
