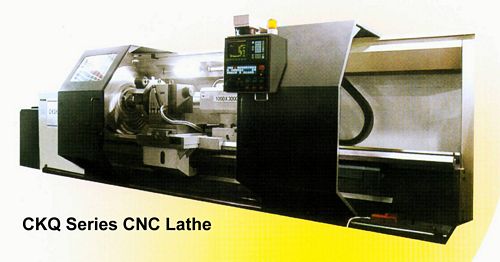

China CKQ61100A CNC Lathe

NLCSY101:

New, China CKQ61100A CNC Lathe

  • Swing Over Bed 1000 mm
  • Swing Over Saddle 610 mm
  • Max Workpiece Length 1500 / 3000 / 5000 / 8000 / 11000 mm
  • Max Turning Length 1490 / 2900 / 4900 / 7900 / 10900 mm
  • Spindle Bore and Nose 130 mm, A2-15
  • Front Taper Hole of Spindle Metric 140
  • Spindle Speeds 5-500 RPM (3 steps, stepless per step)
  • Power of Main Motor 22/26 kW
  • Manual 4-Jaw Chuck 1000 mm
  • Rapid Traverse Axis X & Z: 6 m/min (Z=5 m/min if longer than 5000mm)
  • Travel of X Axis 530 mm
  • Travel of Z Axis 1500 / 3000 / 5000 / 8000 / 11000 mm
  • Tailstock Quill Diameter 160 mm
  • Tailstock Quill Travel 300 mm
  • Tailstock Quill Taper MT 6
  • Max Thrust of Tailstock Quill 30000 N
  • Turret Vertical 4-Position, Model SLD-260A
  • Index Time of Turret 6 s
  • Machining Accuracy IT6-IT7
  • Section of Tool Shank 40x40 mm
  • Surface Roughness of Workpiece Ra 1.6 micron
  • Max Weight of Workpiece: 1000 kg (Disc type), 5000 kg (Shaft type)
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used cnc lathe (cnc lathe, cnc turning machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
