Sunshine Innovation Sams CNC Lathe


China CAK6180 CNC Lathe

NLCSY009:

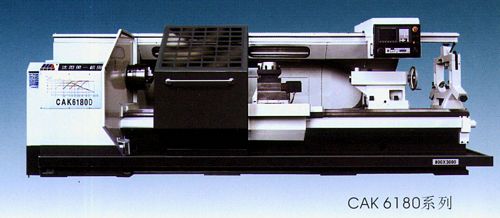

New, China CAK6180 CNC Lathe

  • Swing Over Bed 800 mm
  • Max Workpiece Length 1500 / 3000 mm
  • Max Cutting Diameter 800 mm
  • Swing Over Saddle 480 mm
  • Max Cutting Length 1350 / 2850 mm
  • Manual Chuck Diameter 320 mm
  • Spindle Bore Dia 104 mm, Nose D11
  • Spindle Speed 4 Steps: 17-100, 38-222, 76-445, 171-1000 RPM Stepless
  • Frequency Inverter Motor 15 kW
  • Toolpost Traverse X/Z: 4/8 m/min
  • Indexing 4-Way Electric Toolpost Traverse 3.75 sec
  • Stroke of X Axis 420 mm
  • Stroke of Z Axis 1350 / 2850 mm
  • Dia of Tailstock Quill 100 mm
  • Stroke of Tailstock Quill 250 mm
  • Tailstock Taper MT5
  • Toolpost Rotative Positioning Repeatability Accuracy 0.008 mm
  • Workpiece Accuracy IT6-IT7
  • Surface Roughness Ra1.6
  • Size of Tool Shank 32x32 or 40x40 mm (Square), 32 mm Dia (Bore)
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used cnc lathe (cnc lathe, cnc turning machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Sunshine Innovation through telephone, fax or email.
