China CAK6150Di CNC Lathe

NLCSY005:

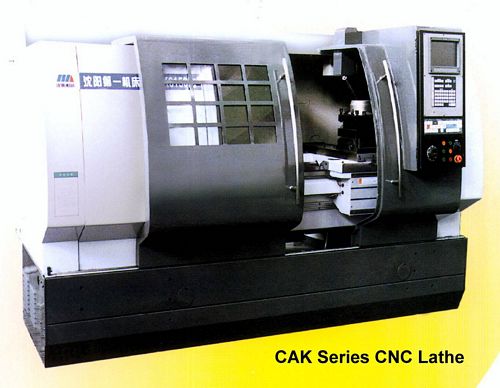

New, China CAK6150Di CNC Lathe

  • Swing Over Bed 500 mm
  • Max Workpiece Length 640 / 890 / 1390 / 1900 mm
  • CNC Control: Fanuc 0i Mate
  • Swing Over Saddle 300 mm
  • Max Cutting Length 600 / 850 / 1350 / 1860 mm
  • Max Cutting Diameter 500 mm
  • Pneumatic Chuck Diameter 250 mm
  • Spindle Bore Dia 70 mm, Nose A8
  • Spindle Speed 3 Steps: 22-220, 71-710, 215-2200 RPM
  • Frequency Inverter Motor 7.5 kW
  • Toolpost Traverse X/Z: 5/10 m/min (If Workpiece Length=1900 mm, Z=6 m/min)
  • Indexing 4-Way Electric Toolpost Traverse 3 sec
  • Stroke of X Axis 250 mm
  • Stroke of Z Axis 600 / 850 / 1350 / 1860 mm
  • Dia of Tailstock Quill 75 mm
  • Stroke of Tailstock Quill 150 mm
  • Tailstock Taper MT5
  • Toolpost Rotative Positioning Repeatability Accuracy 0.008 mm
  • Workpiece Accuracy IT6-IT7
  • Surface Roughness Ra1.6
  • Size of Tool Shank 25x25 mm (Square), 25 mm Dia (Bore)
Sales Enquiry Price Request

The above machine is a new machine directly available for sale from the manufacturer.
Upon your purchase confirmation, we will immediately queue the machine into production.



If you require additional information on this machine or on any other new or used cnc lathe (cnc lathe, cnc turning machine), please let us know. We would be more than happy to assist.

For sales and price enquiry, please contact Zhongyang Engineering through telephone, fax or email.
